| Reception Frequency |
|
| Frequency range: |
100KHz to 2900MHz |
| Freq. Accuracy (TXO): |
±3PPM |
| Freq. Accuracy (display): |
±25PPM |
| Demodulation: |
W-FM, AM, SSB |
| Step frequency: |
5KHz to 9995KHz in multiples of 5KHz and 6.25KHz |
| Data memory: |
Stores 10 displays of up to 160 Channels per display(1600) |
| Set Up memory: |
Stores 10 setups for each scan mode |
|
Reception sensitivity:
|
Approx.0 –6 dBμ EMF.
(S/N: 12dB at N-FM, 10dB at W-FM)
|
| Scan speed : |
125Ch./sec.max. |
| Input impedance: |
50Ω (standard) |
| Max.Input voltage: |
Max. 5V RMS |
| Audio output: |
120mW into 8Ω speaker |
| Level Measurement |
|
| N-FM mode Range |
-70 to –20dBmV(-10 to 40dBμV)for 300 to 1800MHz |
| |
-60 to –20dBmV(0 to 40dBμV)for 1 to 300MHz and 1800 to 2900MHz |
| Resolution |
±0.5dBμV
|
|
Accuracy
|
±3dB(at an ambient of temperature of 23±3) |
|
Repeatability
|
±2dB
|
| W-FM/AM/SSB Range |
-60 to –10dBmV(0 to 50dBμV)for 300 to 1800MHz |
| |
-50 to –10dBmV(10 to 50dBμV)for 10 to 300MHz and 1800 to 2900MHz |
| Resolution |
±0.5dBμV |
| Accuracy |
±3dB(at an ambient of temperature of 23 ± 3) |
| Repeatability |
±2dB
|
|
Bandwidth
|
WFM: Approx. 180KHz(-6dB), AM/SSB: Approx. 2.4KHz(-6dB)
|
|
Spurious and Noise level internally generated
|
-35dBc W-FM
-45dBc for N-FM typical, below a full scale signal level frequency.
|
| Functions |
|
|
Display modes:
|

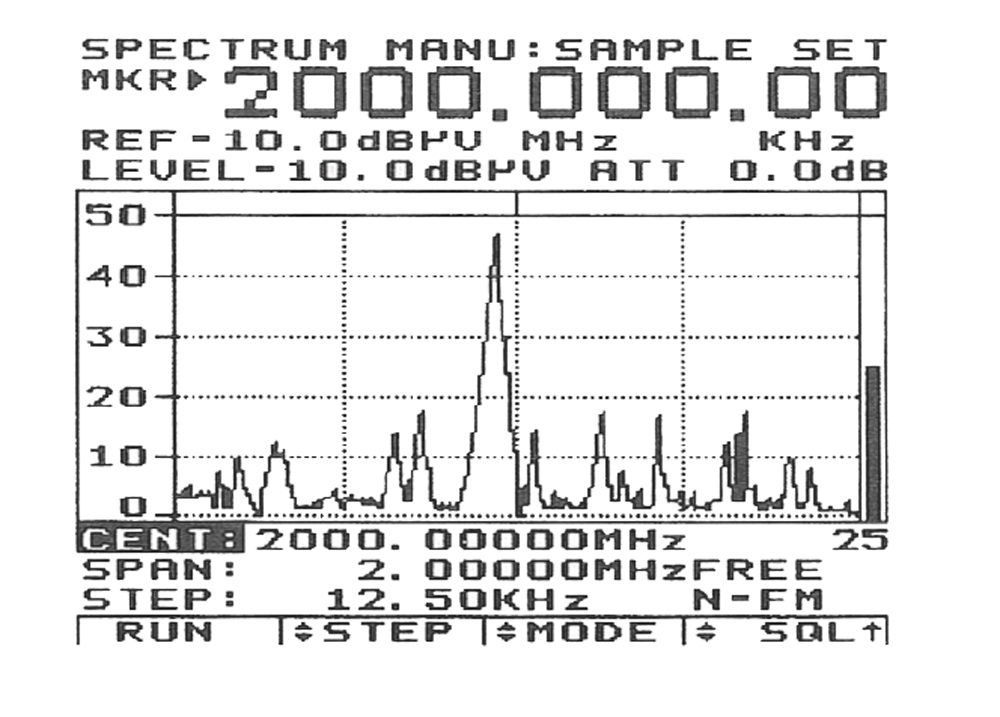

Spectrum display
Multi Bar graph display(5, 10, 20, 40, 80, 160CH)
Single Bar graph display
Difference frequency display
Frequency measurement level display
|
| Sweep modes |
Single, Normal, Free Run, Free Single |
| Scan modes |
Manual, CH.Memory and Search scan |
|
Squelch function
|
Squelch level is displayed as a bar graph and a digital Readout. The squelch level may be adjusted to any value from the reference level to Full scale
|
| Copy function |
The copy set mode allows the contents of the Channel edit, Setup and Data memories to be copied to an external device. Data may also be written in to these memories from an external device. |
| Frequency Counter |
|
| Frequency range |
9MHz to 2900MHz |
| No. of digits |
7 digits |
| Resolution |
1KHz |
| Accuracy |
:±50 PPM ±1 count |
| Sampling time |
0.512sec. |
|
Input sensitivity
|
9MHz to 2000MHz: 150mV RMS
20MHz to 1000MHz: 100mV RMS
2000MHz to 2900MHz: 400mV RMS
|
| Input impedance |
50Ω |
| Max. Input voltage |
5V RMS Max. |
| Data memory |
10 readings may be stored |
| Miscellaneous Specifications |
|
| LCD |
192 X 192 pixels green, Led backlit |
| Back light |
Back light will shut off 5 seconds after the last key depression or continuously on may be selected |
| RS-232C Interface |
1200, 2400, 4800, 9600 BPS(8 Pin Mini Din) |
| Power source |
(6)1.5V AA type NICD batteries 11V to 16V 400mA Max. AC to DC
adapter, 12VDC car adapter |
| Auto Power Off |
Unit will shut off after 5, 10, 20 or 30 minutes of idle time, menu selectable. |
| Physical specifications |
|
| Operating Temperature & Humidity |
0 to 40 at 35-85% RH |
| Storage Temperature |
10 to 50 |
| Dimensions |
4”(W) x 9”(H) x 1.77”(D) |
| Weight |
Approx. 1.4Ib(including antenna) |
| Std Accessories |
Coaxial cable, earphones, Antenna (receiver only), (6)AA NiCd batteries, RS232C cable, carrying Case, carrying strap, Holster, BNC to N adapter, operators manual. |
