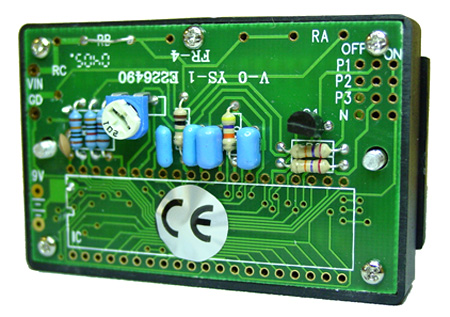

Click to enlarge3-1/2D LCD Digital Panel Meter (PM-188BL)

Don't let the prices fool you. These digital panel meters are not surplus. so even if you design them into an ongoing manufactured product, you can be assured of continued availability. These high quality digital panel meters are decimal point selectable with guaranteed zero reading at zero volts input. This item is for use with an independent power source. (The signal being measured must have a different ground than the Power




Features:

  • Unit has Back Light
  • 200.0mV full scale input sensitivity
  • Single 9V DC operation (independent 7-12VDC) Note: Measured signal must have a return (Ground) independent from power source. Ideal for use as a current meter or any application that requires measurement of a signal that is independent of the power source.
  • Decimal point selectable
  • 13mm LCD figure height
  • Guaranteed zero reading for 0 volt input
  • Automatic polarity indication
  • High input impedance(>100 Mohms)

     Applications Include:

  • Voltmeter
  • Thermometer
  • pH Meter
  • dB Meter
  • Watt Meter
  • Current Meter
  • Capacitance Meter
  • LUX Meter
  • LCR Meter
  • Other Industrial
  • & Domestic Uses


    • View Product Specifications (PDF)




    PM-188BL
    1+
    $12.50ea.
    10+
    $8.90ea.
    25+
    $7.90ea.
    100+
    $7.45ea.
    250+
    $6.70ea.
