We provide two versions of this JUMBO sized LCD
display. The PM-1028A is designed to run off of a 9V (7-11V) independent power
source. The PM-1028B is a 5V common ground version. The figure height is 21mm.

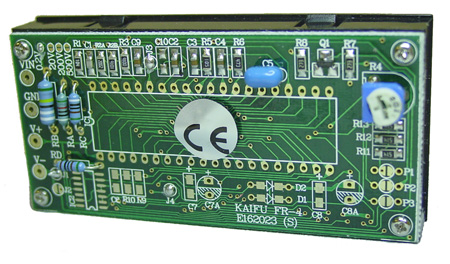

High quality SMT construction provides high reliability and the decimal
point selection is conveniently done by wire jumpers. These panel meters
implement dual slope integration A-D conversion measuring methods. The PM-1028A
and PM-1028B come in an easy to install "snap-in" mountable bezel (typical
rectangular hole size 88mm x 41mm).
Features
- Jumbo LCD display, 21mm Figure Height
- Single 5 Volt Common Ground (PM-1028B) or 9V Independent Power Supply
(PM-1028A)
- Voltage Divider Resistors included and max. Measured Range Selectable by
Soldering a Selection Joint
- Easy Bezel Snap-In Design (84mm x 41mm rectangular hole typical)
- Decimal point selectable by jumping on PCB
- Automatic Polarity indication
- Guaranteed zero reading for 0 volt input
- High input impedance (>100MW)
Possible Applications
Voltmeter
Thermometer
PH Meter
DB
Meter
Watt Meter
Current Meter
Capacitance Meter
Lux Meter
LCR
Meter
Other Industrial & Domestic Uses
