34 Channel USB Logic Analyzer (CSI5034)

34 Channel USB Logic Analyzer

The CSI5034 is a sophisticated 500MHz, 34-channel logic analyzer used for testing, analysis, and troubleshooting of digital circuits. The CSI5034 is equipped with features found only in more expensive bench type instruments The use of advanced large-scale integrated circuits, integrated USB 2.0, CPLD, FPGA, high-frequency digital circuitry, embedded systems, and other advanced technology, make the CSI5034 portable, and easy-to-use, making the CSI5034 your best choice in pc-based logic analyzers The CSI5034 is suitable for electronic measurement engineers, college students in scientific research and development and teaching assistants.

34 input channels capable of simultaneously monitoring data and control information, and is capable of capturing narrow pulses and glitches that may be missed by other test equipment.
Delay feature provides the ability to capture data around the waveform, both before and after the desired trigger signal. This allows the operator to view the data at multiple points in the data stream
Memory feature stores multiple data points for analysis of errors in the unit under test and to aid in locating the defective component.
Intuitive and flexible viewing screens to facilitate analysis of the system under test. The data can de displayed as binary, decimal, hexadecimal values.

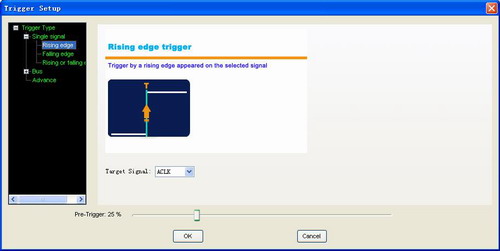

Can be triggered in a variety of ways ( rising edge, falling, edge or both) , and also has an advanced trigger function that allows logic operations to be performed on the data before a trigger is generated. This provides the ability to trigger on a specific data byte or word from any of the monitored channels.

CSI5034 34 wire cable set USB Cable

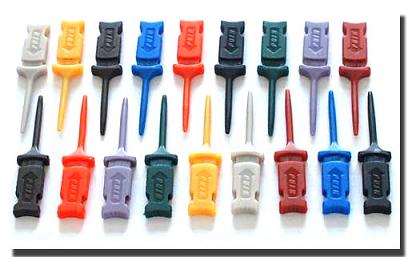

Set of 18 Multi Colored Mini Test Hooks

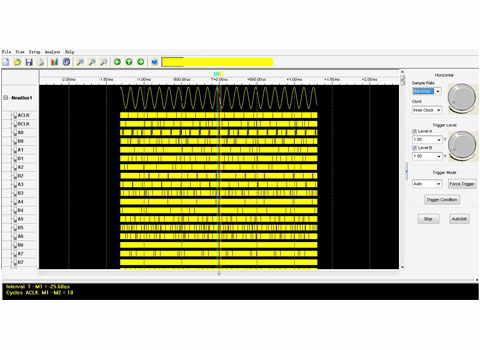

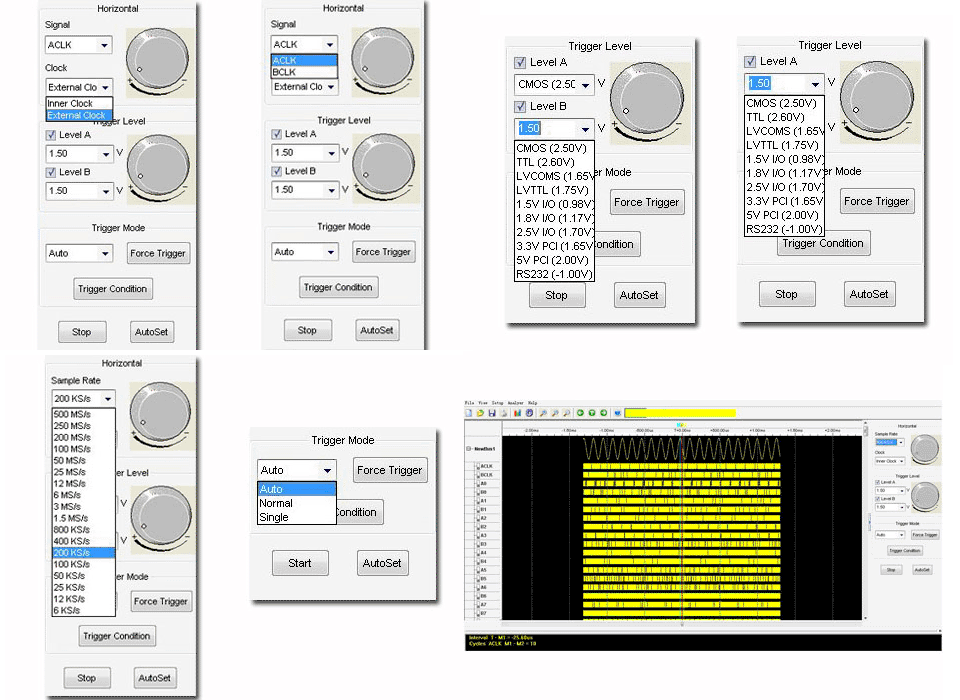

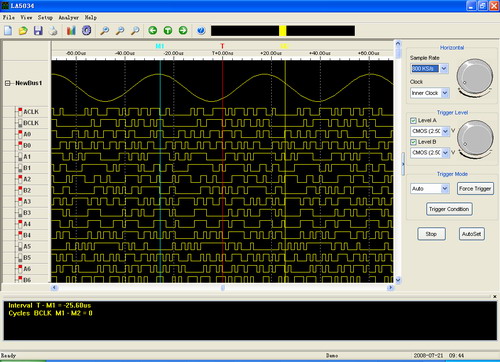

Sample Screens

Sampled channels

34

High input impedance

200K (C=10p)

Input voltage range

-60V~60V

Logic threshold Range

-6V~6V

Max Sample Rate

500 MHz

Max input Signal bandwidth

150 MHz

Min time resolution

2ns

Sample Depth

2KSample

Storage depth

68Kbits

Max record time （Compression mode）

10hour

Max Sample Rate

(Compression mode）

200 MHz

Trigger’s Max rate

250 MHz

Compatible input

TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA

Electrostatic Protected

15KV

Power

USB Port

Temperature range

-10℃~60℃

Users Manual

Extra 34 Wire Cable with Connector (CSI5034 CABLE)

Set of 18 Multi Colored Mini Test Hooks (CSI5034 TEST HOOK SET)

Replacement USB Cable (CSI5034 USB CABLE)
