• Enhanced Version
• 5V or 9V power source
• Common or Isolated Ground
• Integrated adjustment settings on board

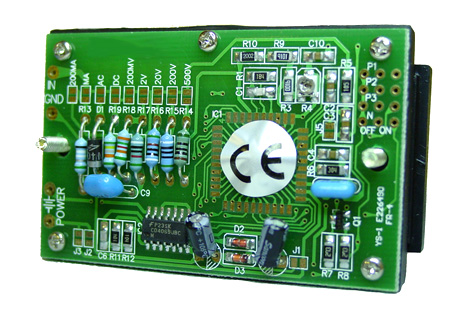

The PM-128E is an enhanced version of our best selling PM-128A 3.5 digit LCD panel meter. PM-128E has all of the capabilities of the PM-128A & is identical in size & look. However, unlike the PM-128A, the E version can be set to work with either a 5VDC or 9VDC power source. Also, the E version will perform with either a common ground or an isoalted ground. Finally, the E version is supplied with easy to use jumper points so the end user can easily set the measurement range required. Like the PM-128A, construction is very professional implementing SMT technology.

• Measurement Ranges:
  • DC Amps: 200mA
  • AC Volts: 200V, 500V
  • DC Volts: 200mV, 2V, 20V, 200V, 500V


The display is a standard Gray LCD & has Black numbers.

The PM-128E is the same size as the PM-128A. The primary section of the meter is approximately 2 5/8" (66mm) wide, 1 5/8" (42mm) high approximately 3/4" (19mm) deep. The second secion is 2 3/4" (70mm) wide, 1 1/4" (32mm) high 1/4" (7mm) deep. Total height is 1 5/8"(42mm), 2 3/4" wide (70mm) & approx 1" (25mm) deep

View Product Specifications (PDF)

View Product Dimensions (PDF)

PM-128E

1+ $12.25ea.

10+ $9.39ea.

25+ $8.49ea.

100+ $7.99ea.

250+ $6.99ea.
