Specifications
Contact Rating: 3 Amp with resistive load at 120 VAC or 28 VDC
Electrical Life: 30,000 make and break cycles at full load
Contact Resistance: 20mW max. initial @ 2-4 VDC
100mA for both coin silver and gold plated contacts.
Insulation Resistance: 1,000 MW min.
Dielectric Strength: 1,000 V RMS @ sea level
Operating Temperature: -30°C to 85°C

Materials
Case: diallyl phthalate (DAP)
Toggle Handle: Brass, chrome plated
Bushing: Brass, nickel plated
Housing: Stainless steel
Terminal/Switch Support: Brass electrotin plated
Contacts: Coin silver, silver plated
Center Contact & Terminal: Brass, silver plated

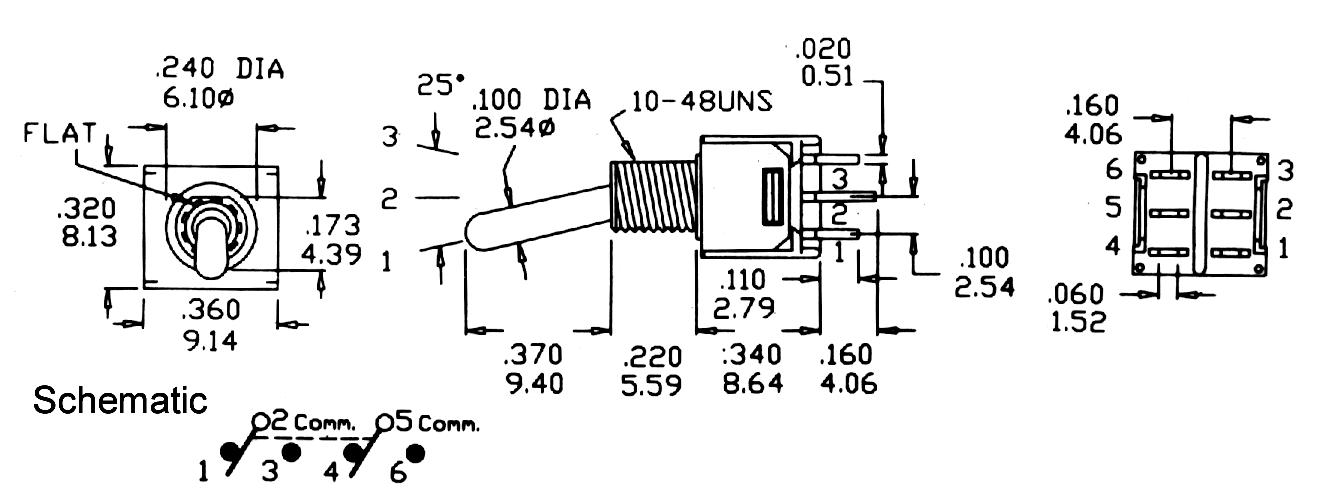

TS-5

1+ $1.36ea.

10+ $1.33ea.

100+ $0.90ea.
