SONY Super HAD CCD Mini Color Pinhole Camera w/Audio (VC-806CPA-AUDIO)

SONY Super HAD CCD equipped camera's feature dramatically improved light sensitivity.

Features:

  • Audio: AUDIO MAX 2Vp-p 50 Ohm
  • Pinhole lens
  • Signal System: NTSC
  • Image Sensor: 1/4” SONY Super HAD CCD
  • Effective Pixels: 510 x 492
  • Horizontal Resolution: 330TV lines
  • Lens: 3.7mm/F2.0 Pinhole
  • S/N Ratio: > 48dB
  • Min. Illumination: 1.0Lux/F1.2
  • White Balance: Auto tracking
  • Shutter Speed: 1/50(1/60)-1/100,000 sec
  • Video Output: 1.0Vp-p 75 Ohm
  • Power Consumption: 12VDC, 120mA

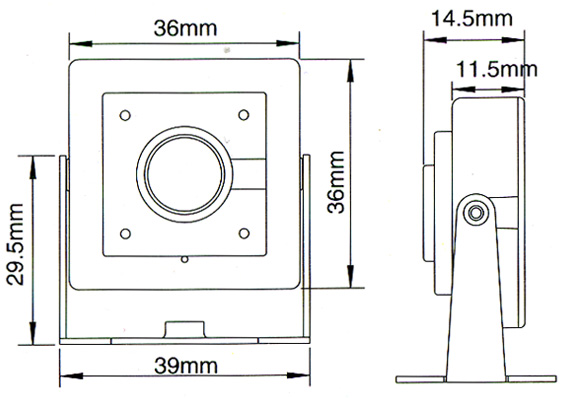

  • Dimensions: 1.44" x 1.44" x 0.58"
  • Click for the recommended AC Power Supply 3A-161WU12




    • VC-806CPA-AUDIOpad
    1+
    $46.50ea.
